Enertork Oil & Gas Equipment

Through knowledge and experience accumulated in the valve actuation for over 25 years, Enertork Ltd. has been a leading electric actuator maker in Korea. Our major products are TX Series (Intelligent type actuator), TM Series (multi-turn actuator), TQ Series (quarter-turn actuator), MW Series (worm reducer), LTMD-Q Series (multi-turn actuator for Nuclear Power Plant), etc.

enertork-tx

TX Series

TX Series is a new intelligent type actuator. It increase the powerful electronic wisdom to fulfill the requirement of customer’s demand such as fieldbus controls, self diagnostic system, data logging, non-intrusive settings and controls by using remote control kit and rotary switch.

Feature

  • Non-intrusive Position & Torque setting. Easy setting & configuration by remote control kit & rotary switch
  • IP68 water proof system (8m, 72hours)
  • Exd IIB T4 explosion proof (IEC-60079-0,1)
  • Fieldous controls(Profibus-DP, FF, HART, Modbus etc.)
  • Full Graphic LCD Display
  • High resolution absolute encoder
    No need to use back-up battery for memorizing current position

tm-series

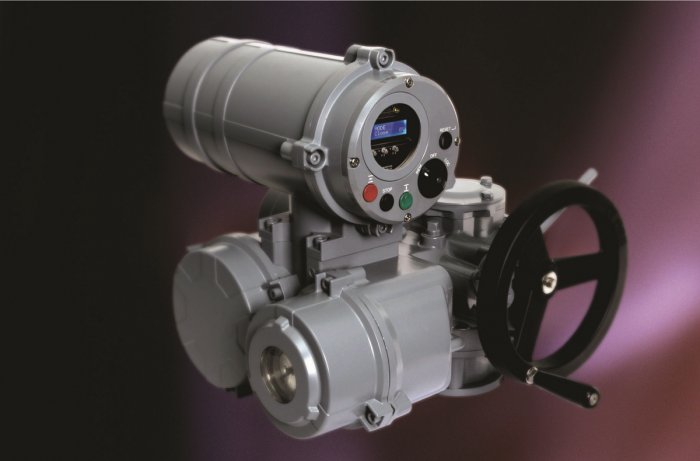

TM Series

TM Series is for multi turn valves – globe, gate valves,and also for quarter turn valves – butterfly,ball valves adopting 2nd worm reducer.

Feature

  • Easy to change for trouble shooting and maintenance
  • Wide range voltage motors (220~460AC, 3Phase, 50/60Hz)
  • Water proof: IP-68 (IEC-60529, immersible to a depth of 8 meters for 72 hours)
  • Explosion proof: Exd IIB T4 (IEC-60079-0,1)
  • Fieldbus communication (Profibus DP, Foundation fieldbus, Modbus, HART)
  • Smart type with non-intrusive setting tool

tq-series

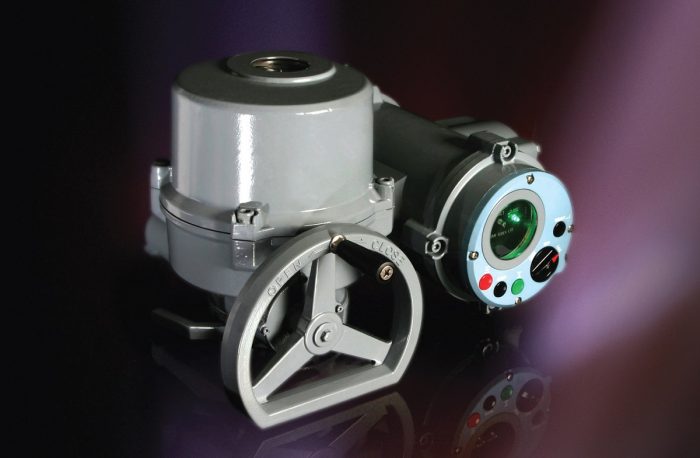

TQ Series

TQ Series is for small quarter turn applications such as ball, butterfly, plug valves, dampers and similar usage.

Feature

  • Light, compact and corrosion resistant Aluminum alloy enclosure
  • Wide range voltage motors (220~460AC, 3Phase, 50/60Hz)
  • Water proof: IP-68 (IEC-60529, immersible to a depth of 8 meters for 72 hours)
  • Explosion proof: Exd IIB T4 (IEC-60079-0,1)
  • Fieldbus communication (Profibus DP, Foundation fieldbus, Modbus, HART)
  • Smart type with non-intrusive setting tool
  • DC Driving type is available

ltmd-q-series

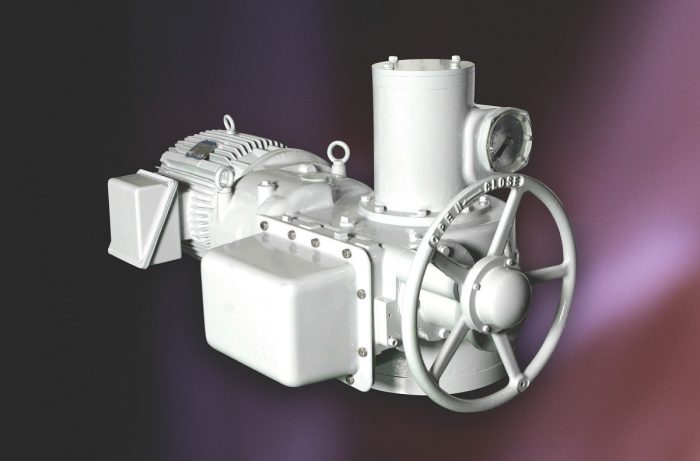

LTMD-Q Series

TM Series is for multi turn valves – globe, gate valves,and also for quarter turn valves – butterfly,ball valves adopting 2nd worm reducer.

Feature

  • Qualified by IEEE-382 & Etc
  • robust cast-iron construction
  • Long lifespan & easy maintenance
  • Wide range voltage motors (220~460AC, 3Phase, 50/60Hz)

mw-series

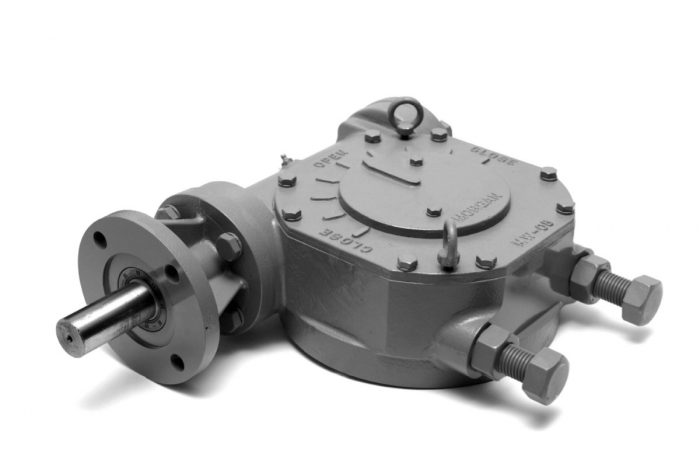

MW Series

MW series is worm reducer which used for butterfly, ball, plug valve and damper.

Feature

  • High efficiency and long lifespan
  • Adopted the international flange standard EN ISO 5211
  • Weather proof type of IP-67 (Option IP-68)
  • Allowable torque 500~300,000Nm
